Stihl

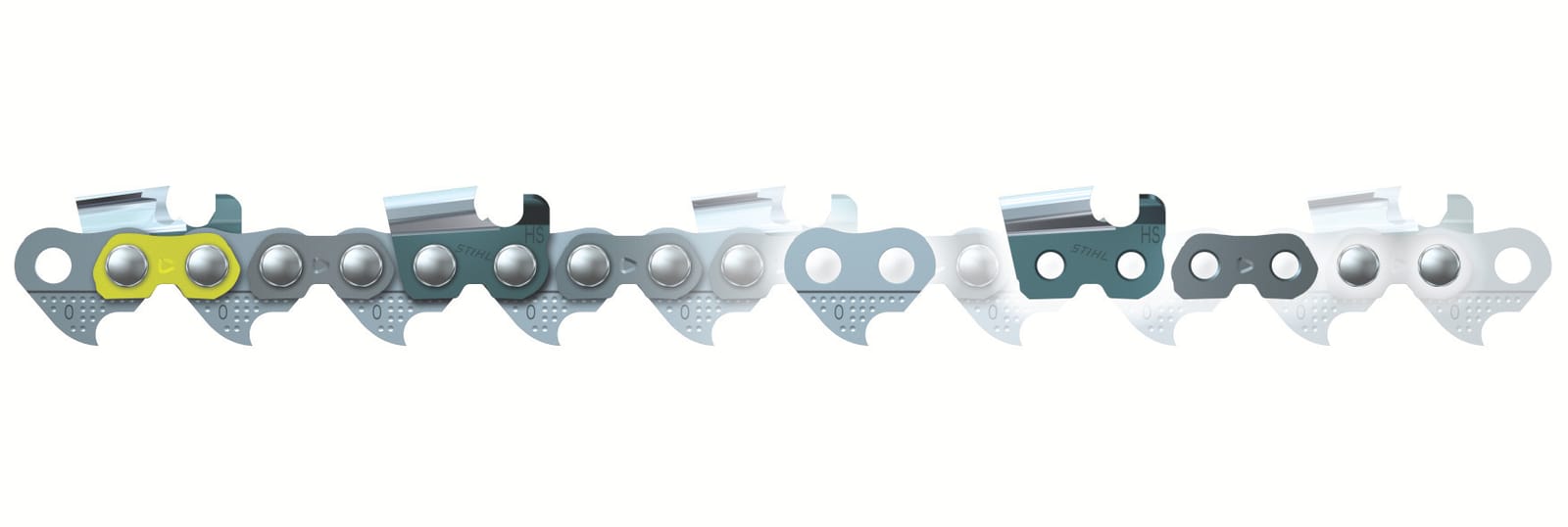

Stihl 3620 000 0740 RAPID™ Micro™ .040" | 40 RMHS 50' Reel
SKU: 1377530 · MPN: 3620 000 0740 · UPC: 795711298524
Features & Benefits
Cutter Heels
Patented, asymmetrically shaped cutter heels enlarge the running face. This considerably reduces the pressure on the cutter and extends the service life.
Cutter Links
Semi-chisel with slim, straight sided cutter.
Drive Links
The drive links are reinforced around the rivet holes <strong>(A)</strong>.The part of the drive link <strong>(B)</strong> which runs in the guide bar groove is recessed thickness of the drive link equals 0.080”.
STIHL OILOMATIC® System
The patented OILOMATIC® system found on STIHL saw chains is an exclusive selling feature. This is a specially engineered groove designed to channel oil to the critical wear areas. This superior lubrication feature gives the customer extended chain life with lowered tendency for stretching.A further development of the OILOMATIC® system is the oil reservoir next to the OILOMATIC® channel. These reservoirs fill up with oil when the drive links pass the guide bar’s inlet hole and are emptied by the centrifugal force acting at the bar nose. This provides more oil for distribution to the chain, groove and rails and protects against premature wear. Simply put, it brings the oil to where it is needed. Available on all STIHL saw chains.
Tie Straps
Asymmetrically shaped running faces increase the wear surface. This considerably reduces the pressure on the tie straps and extends the service life of the chain.
Specifications
| Chain Gauge | .080" |
| Drive Links | 740 |
| Chain Pitch | .404" |
