Stihl

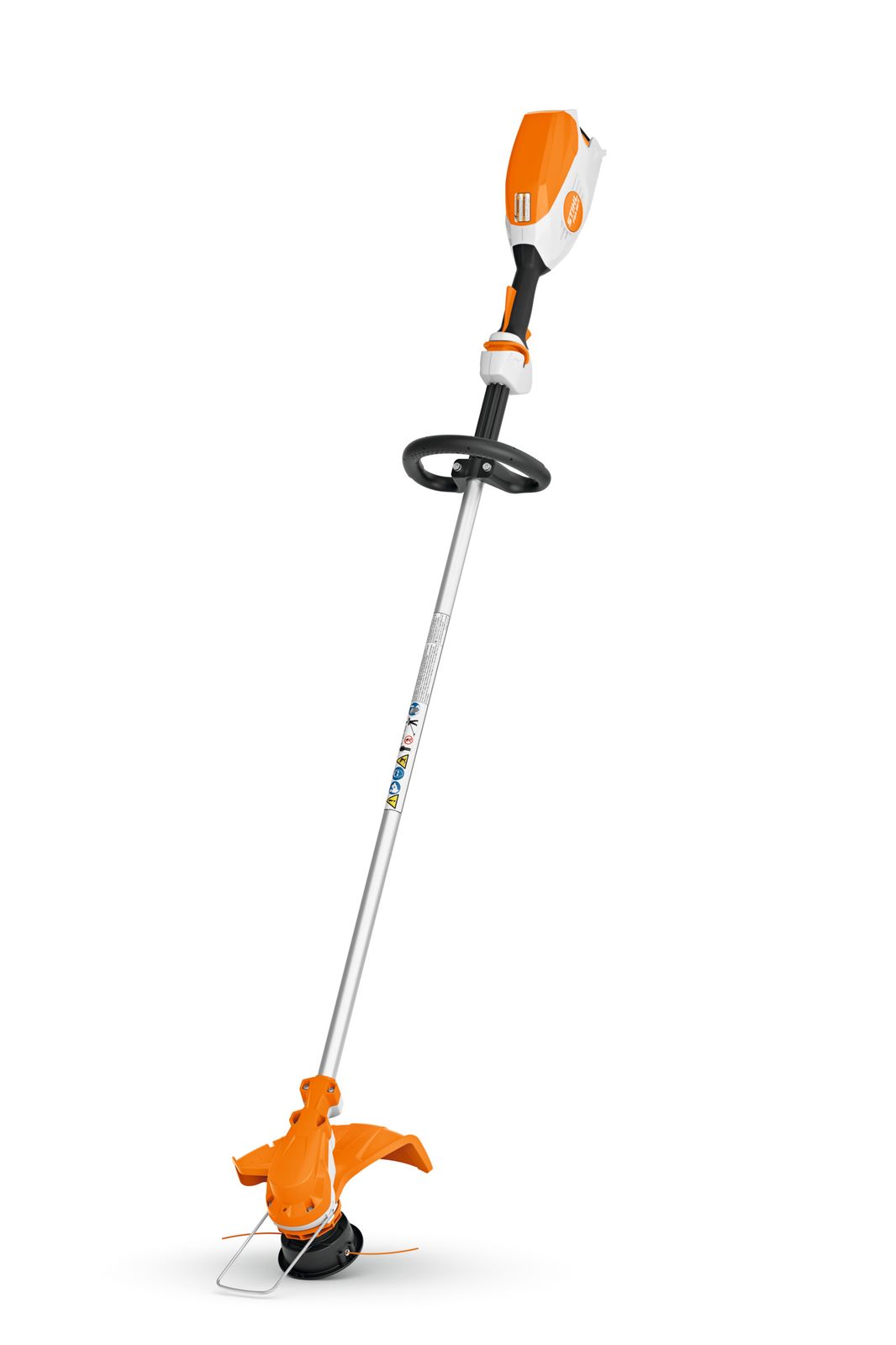

Stihl FA05 011 5701 US FS 86 R (Unit Only)
SKU: 1324151 · MPN: FA05 011 5701 US · UPC: 886661336746
Features & Benefits
Adjustable Front Handle
The front handle is easily adjustable (360-degree rotation) for comfort.
AutoCut® C EasySpool™
AutoCut® C versions reload line by simply inserting the line into eyelets and twisting the bump knob.
Hanging Loop
Hang your cordless trimmer securely on a wall to save space using the loop in the handle housing.
High-Tech Polymer Housing
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
Lightweight Portability - Universal
This product is lightweight for easy portability, great maneuverability, and extended use.
Loop Handle
A thumb screw allows the ergonomic loop handle to be easily adjusted to the desired position without tools.
Reduced-Emission Engine Technology—Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Retaining Latch
All STIHL battery-powered products feature a retaining latch that is designed to prevent the unit from unintentional starts when the battery is inserted.
STIHL Electric Motor
Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.
Start/Run/Stop Controls on Handle
Convenient start/run/stop controls are built into the handle for easy operation.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Variable-Speed Trigger
The variable-speed trigger allows precise control for each task.
Specifications
| Max. battery working time AR 2000 L with plastic blade mowing head | 400 min |
| Max. battery working time AR 3000 L with line mowing head | 290 min |
| Vibration value on the left in right-handed operation | 12.1 ft/s² |
| Max. voltage | 40 V |
| Max. battery working time AP 200 S with plastic blade mowing head | 70 min |
| Max. battery working time AP 200.0 P | 40 min |
| Max. battery working time AP 200 with plastic blade mowing head | 70 min |
| Max. battery working time AP 300.0 P | 65 min |
| Max. battery working time AP 300 S with line mowing head | 55 min |
| Max. battery working time AP 100 with plastic blade mowing head | 30 min |
| Max. battery working time AP 200 S with line mowing head | 35 min |
| Max. battery working time AP 100 with line mowing head | 17 min |
| Max. battery working time AP 200 with line mowing head | 35 min |
| Min. battery working time AP 30 with plastic blade mowing head | 55 min |
| Min. battery working time AP 20 with plastic blade mowing head | 30 min |
| Max. battery working time AP 20 with line mowing head (Name_146) | 60 min |
| Max. battery working time AR 2000 with line mowing head | 170 min |
| Max. battery working time AP 20.1 | 30 min |
| Max. battery working time AR 1000 with line mowing head | 115 min |
| Max. battery working time AR 3000 L with plastic blade mowing head | 580 min |
| Max. battery working time AP 300 with line mowing head | 40 min |
| Recommended battery | AP 20.1 |
| Max. battery working time AR 2000 with plastic blade mowing head | 270 min |
| Device weight without battery | 7.2 lb |
| Max. battery working time AP 30.1 | 55 min |
| Power | 0.7 BHP |
| Max. battery working time AP 30 with line mowing head | 110 min |
| Max. battery working time AR 1000 with plastic blade mowing head | 185 min |
| Power consumption | 0.65 kW |
| Device length without cutting tool | 6.8 in |
| Max. battery working time AR 2000 L with line mowing head | 200 min |
| Max. battery working time AP 500 S with line mowing head | 65 min |
| Max. battery working time AP 300 with plastic blade mowing head | 80 min |
| Vibration value on the right in right-handed operation | 6.6 ft/s² |
| Cutting circle diameter | 13.8 in |
| Max. battery working time AP 500 S with plastic blade mowing head | 130 min |
| Max. battery working time AP 300 S with plastic blade mowing head | 110 min |
| Max. battery working time AP 100.0 P | 20 min |
| Rated voltage | 36 V |
| Cordless power system | ALLPRO/AP |
