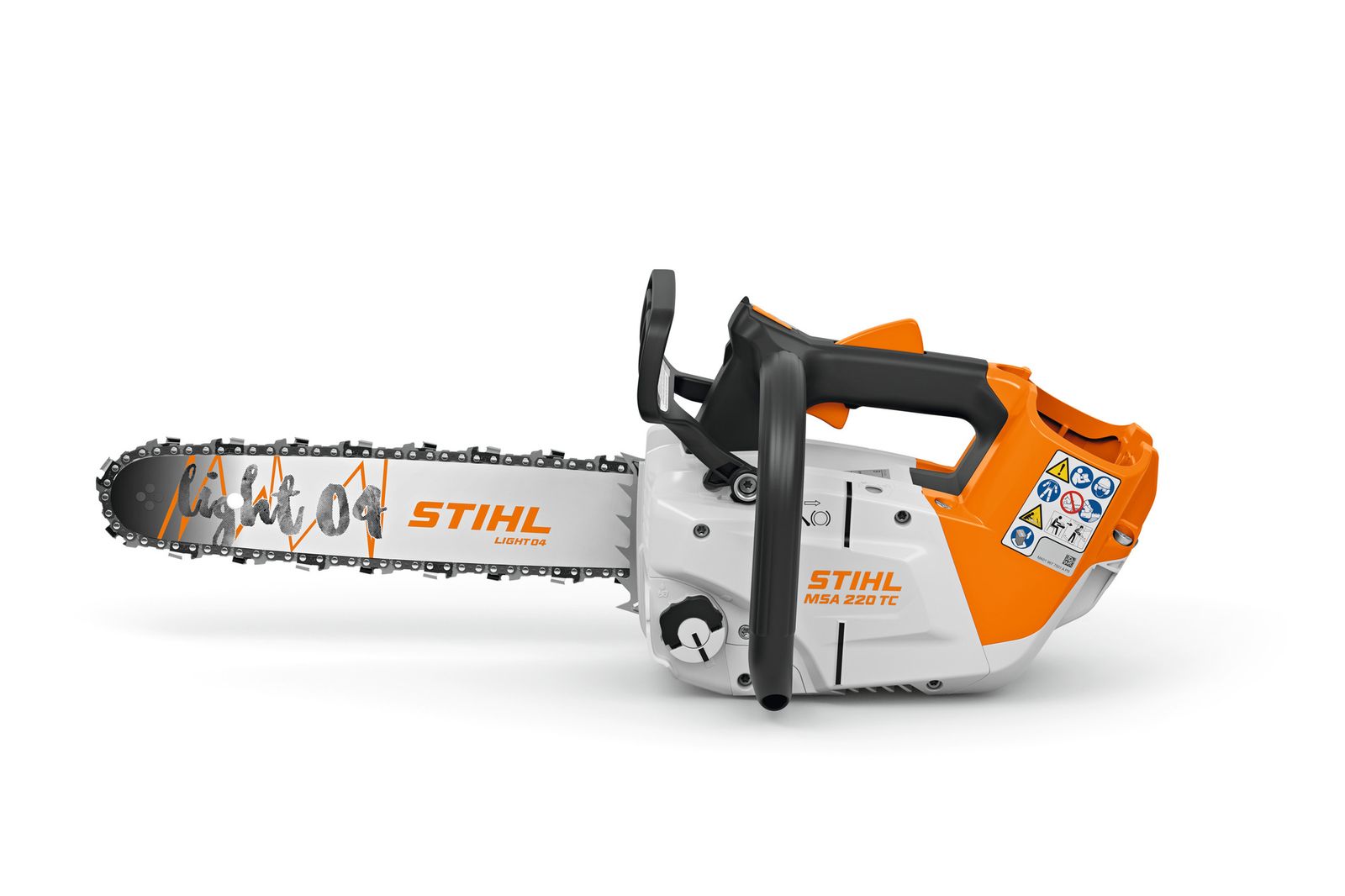

Stihl MA01 200 0056 Msa 220 Tc-O 12" 61Ps3
SKU: 1377408 · MPN: MA01 200 0056 · UPC: 886661581221
Features & Benefits
Anti-Vibration System
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Brushless Motor
The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.
Captive Bar Nut
The captive bar nut is held securely in place, which eliminates the risk of dropping or losing the bar nut during saw chain maintenance.
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
IPX4 RATING
This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Low Oil Sensor
The low oil sensor allows the operator to see when the oil is low so they can keep the bar and chain properly lubricated.
Magnesium Motor Housing
The magnesium motor housing provides added durability to this powerful chainsaw.
Master Control Lever™
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
Reduced-Emission Engine Technology—Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
STIHL Quickstop®
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
Side-Access Chain Tensioner
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Toolless and Translucent Bar and Chain Oil Tank
The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
Variable-Speed Trigger
The variable-speed trigger allows precise control for each task.
Specifications
| Chain Gauge | .043" |
| Max. battery working time AP 200.0 P | 31 min |
| Max. battery working time AP 200 S | 38 min |
| Device weight without battery | 6.0 lb |
| Max. battery working time AP 300 | 25 min |
| Rated voltage | 36 V |
| Max. cuts per battery charge AP 200 S | 130 pcs |
| Max. battery working time AP 300 S | 34 min |
| Max. battery working time AP 300.0 P | 42 min |
| System weight without battery | 7.0 lb |
| Max. battery working time AP 500 S | 41 min |
| Max. battery working time AP 30.1 | 45 min |
| Device length with bumper spike | 12.4 in |
| Bar Length | 12" |
| Max. voltage | 40 V |
| Recommended battery | AP 300.0 P |
| Max. battery working time AP 20.1 | 44 min |
| Max. battery working time AP 200 | 16 min |
| Max. battery working time AP 30 | 45 min |
| Max. cuts per battery charge AP 300 S | 290 pcs |
| Chain Pitch | |
| Cordless power system | ALLPRO/AP |
| Power consumption | 2.10 kW |
| Max. cuts per battery charge AP 500 S | 340 pcs |
| Power | 2.3 BHP |
| Max. battery working time AP 20 | 44 min |
