Stihl

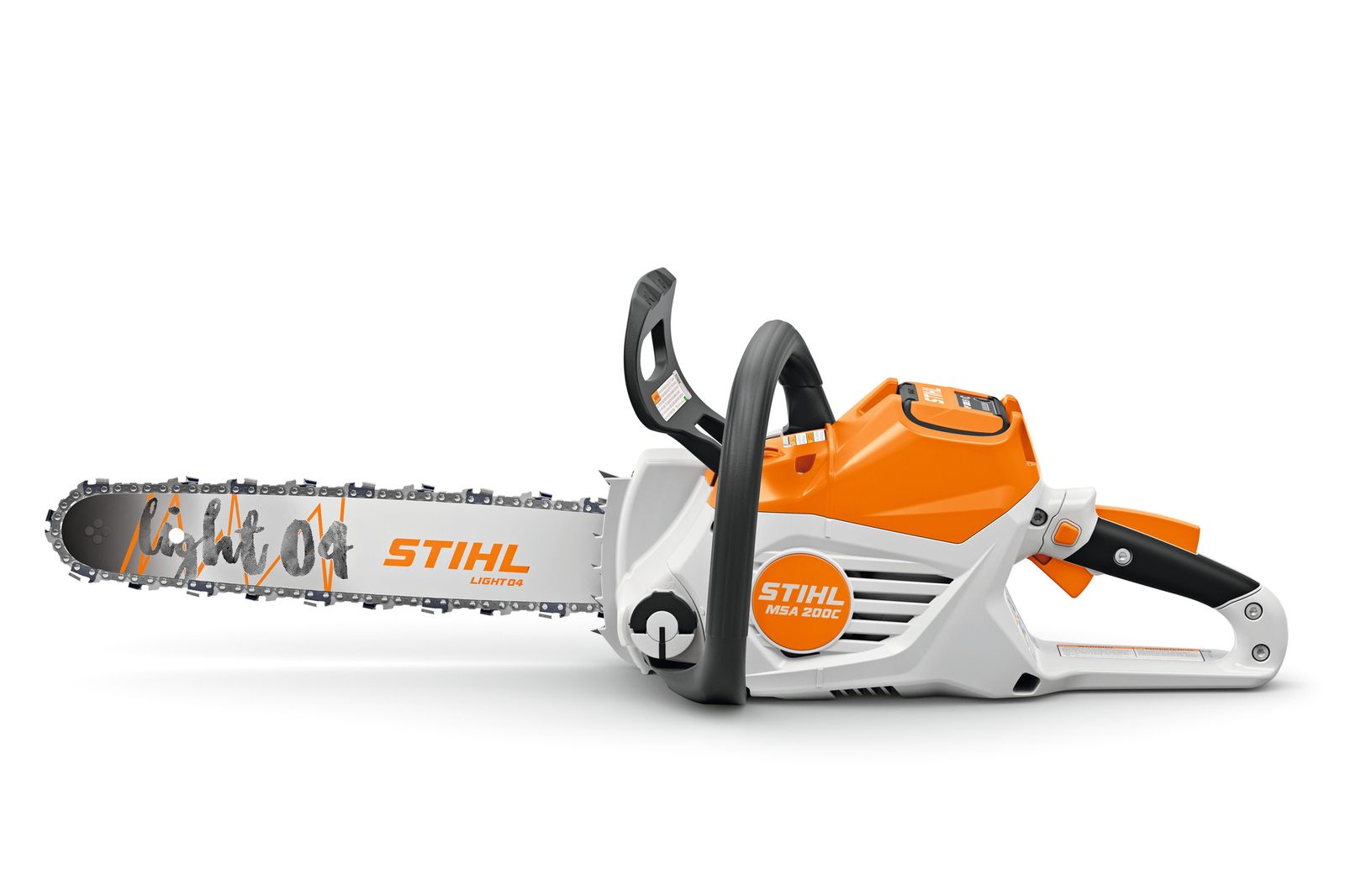

Stihl MA03 200 0008 MSA 200 w/12" bar
SKU: 1377611 · MPN: MA03 200 0008 · UPC: 886661874903
Features & Benefits
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
IPX4 RATING
This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Lightweight Portability - Universal
This product is lightweight for easy portability, great maneuverability, and extended use.
Quick Chain Adjuster (QCA) (B)
The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
Reduced-Emission Engine Technology—Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Rubberized Soft-Touch Handle
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Toolless and Translucent Bar and Chain Oil Tank
The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
Variable-Speed Trigger
The variable-speed trigger allows precise control for each task.
Specifications
| Cordless power system | ALLPRO/AP |
| System weight without battery | 7.9 lb |
| Power | 2.0 BHP |
| Max. battery working time AP 300 | 32 min |
| Max. battery working time AP 200.0 P | 32 min |
| Power consumption | 1.80 kW |
| Max. battery working time AP 200 S | 38 min |
| Recommended battery | AP 200.0 P |
| Max. cuts per battery charge AP 500 S | 320 pcs |
| Device weight without battery | 6.9 lb |
| Max. battery working time AP 200 | 42 min |
| Bar Length | 12" |
| Max. cuts per battery charge AP 200 S | 160 pcs |
| Max. battery working time AP 300.0 P | 48 min |
| Max. cuts per battery charge AP 300 S | 270 pcs |
| Max. battery working time AP 30 | 46 min |
| Device length with bumper spike | 17.2 in |
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Max. battery working time AP 100.0 P | 26 min |
| Max. battery working time AP 30.1 | 46 min |
| Max. battery working time AP 300 S | 40 min |
| Max. battery working time AP 500 S | 48 min |
| Chain Pitch | |
| Chain Gauge | .043" |
