Stihl

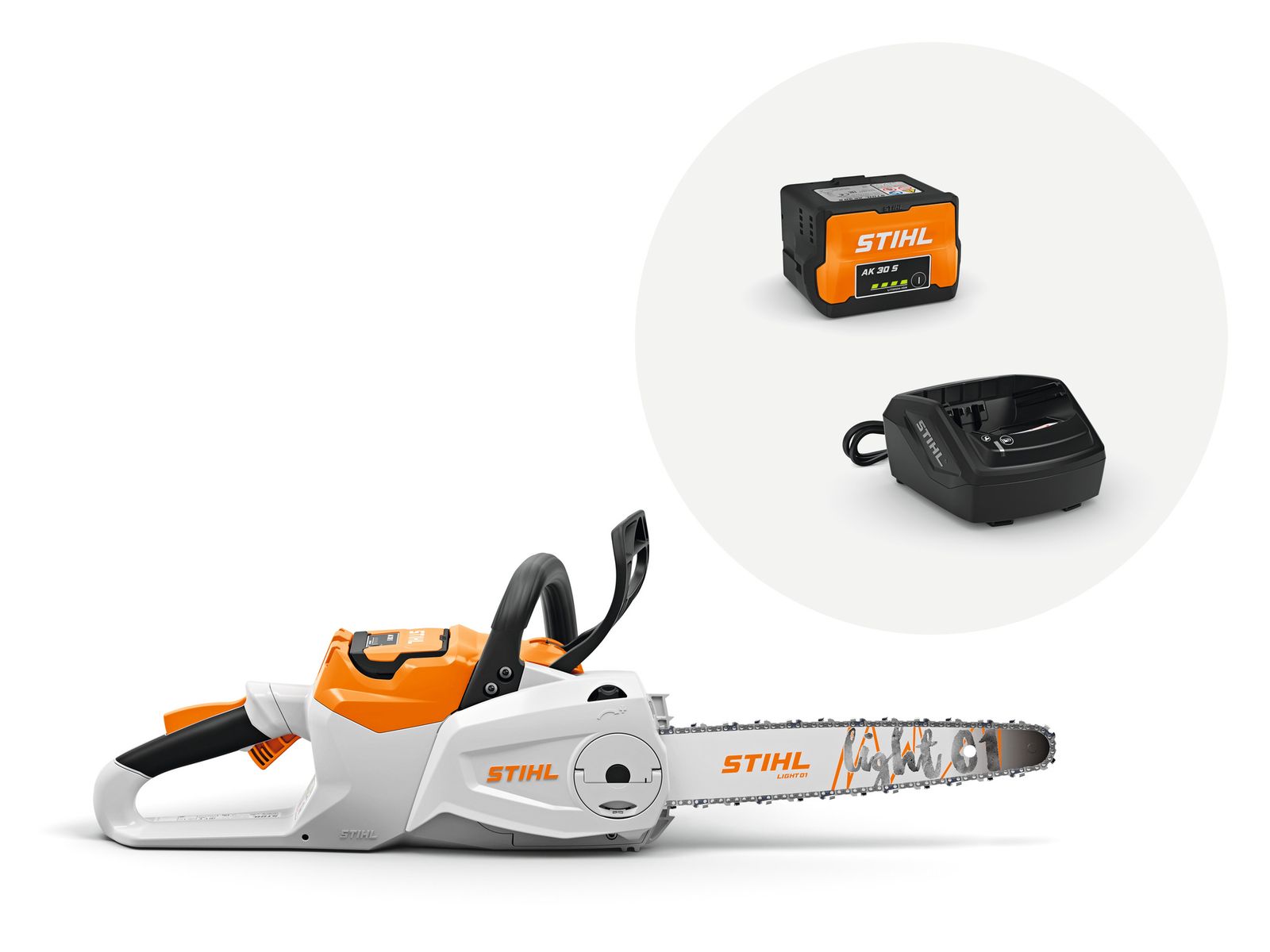

Stihl MA04 011 5835 US MSA 80 C-B Set
SKU: 1377631 · MPN: MA04 011 5835 US · UPC: 886661684113
Features & Benefits
Brushless Motor
The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
Lightweight Portability
This product is lightweight for easy portability, great maneuverability, and extended use.
Rubberized Soft-Touch Handle
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
Toolless Fuel and Oil Caps with Retainers
Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
Trigger-Switch Lockout
Trigger-switch lockout prevents activation of the trigger-witch until depressed.
Power-to-Weight Ratio
Weighing only 10.1 lbs. and delivering 1.20 kW of power, the MSA 80 C-B yields one of the industry’s best power-to-weight ratios.
Quick Chain Adjuster
The Quick Chain Adjuster allows you the convenience of toolless chain tensioning so you can get back to work.
Variable-Speed Trigger
With the ability to adjust speed depending on the job, the variable-speed trigger allows users to optimize performance and run times.
14” Guide Bar
The MSA 80 C-B is the first battery chainsaw in the AK System to feature a 14” bar, giving homeowners a heavy-duty option for firewood cutting and yard maintenance.
Transparent Oil Tank - MSA 80 CB
The transparent oil tank makes it easy for users to keep track of oil levels.
STIHL Quickstop® Chain Brake System
STIHL chainsaws are equipped with a chain-stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
Specifications
| Max. cuts per battery charge AK 30 | 230 pcs |
| Cordless power system | AK |
| Max. battery working time AK 30 | 35 min |
| Recommended battery | AK 30 S |
| Max. voltage | 40 V |
| Power | 1.6 BHP |
| Device length with bumper spike | 18.1 in |
| Rated voltage | 36 V |
| Device weight without battery | 6.5 lb |
| Bar Length | 14" |
| Power consumption | 1.50 kW |
| Max. battery working time AK 30 S | 35 min |
| Chain Gauge | .043" |
| Chain Pitch |
