Stihl

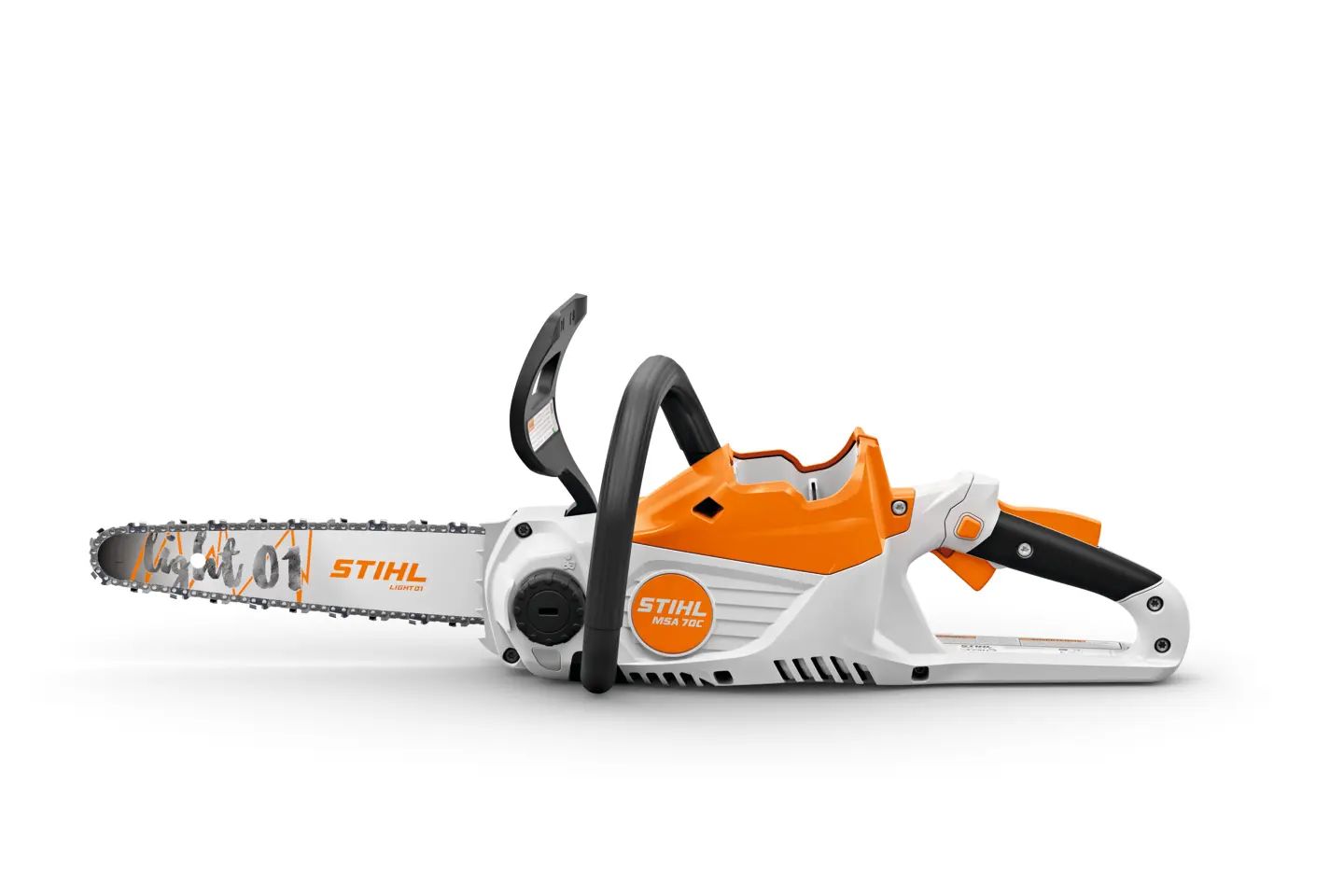

Stihl MA04 011 5877 US MSA 70 C-B (Unit Only)
SKU: 1378070 · MPN: MA04 011 5877 US · UPC: 795711957162
Features & Benefits
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
Lightweight Portability - Universal
This product is lightweight for easy portability, great maneuverability, and extended use.
Quick Chain Adjuster (QCA) (B)
The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
Reduced-Emission Engine Technology—Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Rubberized Soft-Touch Handle
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
STIHL Electric Motor
Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.
STIHL Quickstop®
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Translucent Bar and Chain Oil Tank
The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
Variable-Speed Trigger
The variable-speed trigger allows precise control for each task.
Specifications
| Power | 1.2 BHP |
| Bar Length | 12" |
| Max. battery working time AK 30 S | 45 min |
| Max. battery working time AK 20 | 40 min |
| Vibration level right | 11.2 ft/s² |
| Rated voltage | 36 V |
| Device length with bumper spike | 17.8 in |
| Chain Gauge | .043" |
| Max. battery working time AK 30 | 45 min |
| Recommended battery | AK 20 |
| Chain Pitch | |
| Device weight without battery | 5.6 lb |
| Cordless power system | AK |
| Vibration level left | 10.5 ft/s² |
| Power consumption | 1.10 kW |
| Max. voltage | 40 V |
