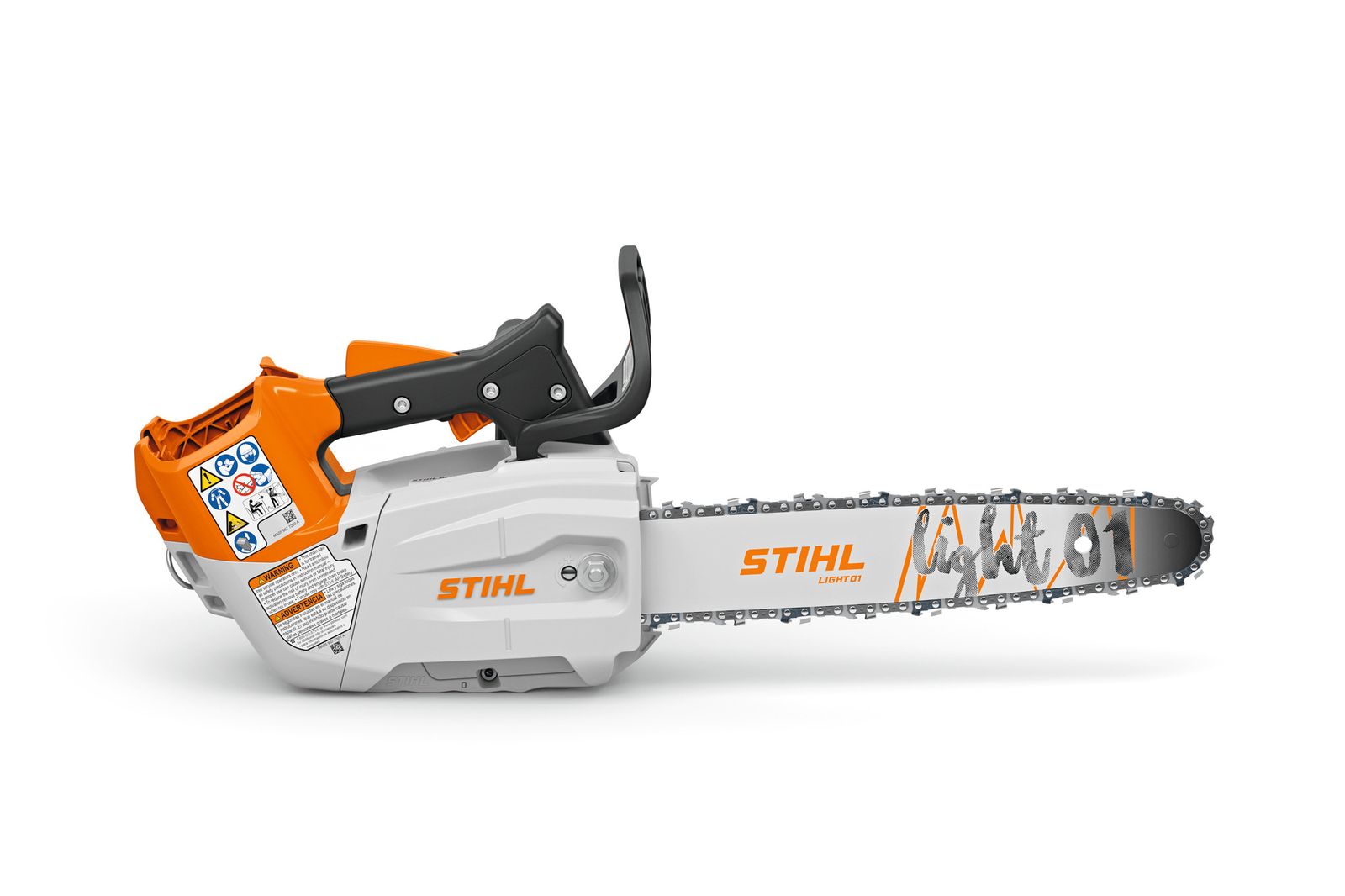

Stihl MA05 011 5801 US MSA 190 T (Unit Only)
SKU: 1377654 · MPN: MA05 011 5801 US · UPC: 886661683994
Features & Benefits
Power Boost
<p>MAXIMUM PERFORMANCE INCREASE. Thanks to internal intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.</p>
CONSTANT POWER
<p>CONSTANT POWER, REGARDLESS OF BATTERY CHARGE STATUS. With other brands of battery tools, the performance usually decreases during work as the battery discharges. This is not the case with STIHL cordless power tools with CONSTANT POWER. Thanks to the intelligent electronics, your STIHL power tool works with consistently high power.</p>
STIHL Quickstop®
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
Side Access Chain Tensioner
More convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
Throttle Trigger Interlock
This safety feature must be depressed before the trigger can be activated.
Toolless and Translucent Bar and Chain Oil Tank
The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
Variable-Speed Trigger
With the ability to adjust speed depending on the job, the variable-speed trigger allows users to optimize performance and run times.
Specifications
| Max. cuts per battery charge AP 300 S | 255 pcs |
| Max. cuts per battery charge AP 500 S | 306 pcs |
| Max. voltage | 40 V |
| Max. battery working time AP 200.0 P | 39 min |
| Max. battery working time AP 200 | 48 min |
| Max. battery working time AP 20 | 37 min |
| Device weight without battery | 5.8 lb |
| Max. battery working time AP 500 S | 58 min |
| Cordless power system | ALLPRO/AP |
| Max. battery working time AP 300.0 P | 58 min |
| Max. battery working time AP 200 S | 28 min |
| Recommended battery | AP 200.0 P |
| Power | 1.6 BHP |
| Max. battery working time AP 100.0 P | 20 min |
| Vibration level right | 12.8 ft/s² |
| Power consumption | 1.50 kW |
| Rated voltage | 36 V |
| Vibration level left | 12.5 ft/s² |
| Max. battery working time AP 30 | 47 min |
| Max. cuts per battery charge AP 200 S | 170 pcs |
| Chain Pitch | |
| Max. battery working time AP 300 S | 48 min |
| Max. battery working time AP 30.1 | 47 min |
| Device length with bumper spike | 12.0 in |
